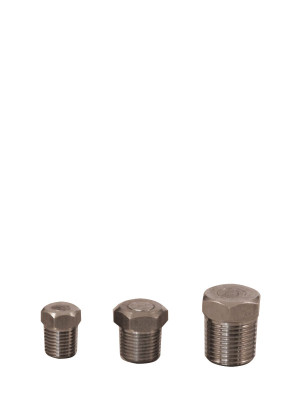

Fuse Plug (Model 2102)

The Ruelco fuse plug is a heat sensitive device designed to vent control pressure at a predetermined temperature. Ruelco fuse plugs are manufactured using a process that assures a leak free operation. The sensing temperature of the fusible material is clearly marked on each fuse plug to assure proper identification.

  • 316 stainless steel construction (models to NACE MR0175 available).
  • Leak free seal.
  • Small compact design.
  • Large Cv produce large flow rates.
  • 1/8″, 1/4″, 3/8″ and 1/2″. MNPT sizes.
  • 158, 168, 183, 210, 255, 283, or 361 Deg F sensing temperatures.
  • Consult the factory for additional sensing temperatures.
  • 1/4″ NPT MNPT model with 500 PSI maximum working pressure is available (Model 2101).
